▶ Infrared Thermometer

​

- In general temperature measurement, a thermocouple can be used for direct contact with the heating element for measurement. However, in some cases, it is impossible to detect temperature by direct contact.

- In such a case, it is convenient to use an IR thermometer as the temperature can be measured in a contactless manner.

- When using an IR thermometer, the emissivity value has to be adjusted according to the object's material or color as the thermometer converts the wavelength and amount of IR emitted from the object to temperature.

​

▶ Specifications

​

standard	3iP7DL3U	3iLTDL3U	3iLTSC	3iLTCL3U	3iLRL3U	3iLRSC	3iG5SC	3i2ML3U	3i2MSC	3i1ML3U	3i1MSC
Measurement Temperature Range	10℃~ 800℃	30℃~ 1200℃					150℃~ 1800℃	200℃~ 1800℃			600℃~ 3000℃
Wavelength Range	7.9microns	8~14microns					5microns	1.6microns			1microns

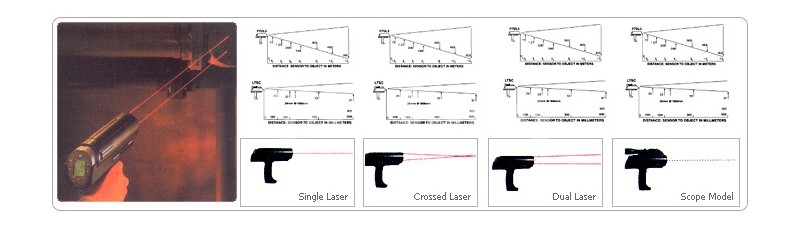

SCOPE 및 LASER	DUAL	DUAL	SCOPE	CROSSED	SINGLE	SCOPE	SCOPE	SINGLE	SCOPE	SINGLE	SCOPE
SIGHTING (L3U)	LASER	LASER		LASER	LASER			LASER		LASER
Functions (common)	1. Display of current temperature value and Min/Max/△T/Avg temperature 4. Analog (1mV/℃) and Digital Output 7. 100 locations Data Memory 2. Reproduction of final value 5. LCD Backlight 8. Auto Sleep 3. Lockable 6. Ambient temperature compensation 9. Hi/Lo temperature setting and alarm
Response Time	700 m/sec							550 m/sec
Dimensions and Weight	LASER MODEL : 208×257×71㎜(794g)/SCOPE MODEL : 244℃257℃71㎜(1000g)
Standard Parts	Carrying Pouch, Brightness filter (3i 1MSC only)

​

*Accuracy: ±1% of Reading (min. error ±1℃)

*Ambient Temperature Range: 0~50℃

*Power: 6V(1.5×4EA) Alkaline batteries

*Repeatability: ±0.5% of Reading

*Emissivity: 0.1~1.0 Adjustable

​

​

​
